Traffic Warning Trailer Gabari Model
Properties
Traffic Warning Trailer Gabari Model
Product - Project Features
Traffic Warning Trailer Large Model
TECHNICAL SPECIFICATIONS
Mechanical Properties
- Dimensions are manufactured in accordance with highway standards.
-Top Signaling VMS carcass size 640x1200mm (can be made in desired size)
-Lower Signaling VMS carcass size 960x1280mm (can be made in desired size)
-Total open height 6000mm
-Loading frame dimensions 1650x2850mm
- The profiles used, static calculations, wind resistance calculations and carrier contraction calculations are manufactured considering all adverse conditions.
- Lifting and lowering with a single button thanks to the hydraulic power unit and hydraulic piston.
-Front support wheel with double connection bearings
-The traffic warning trailer has a double torsion axle system.
-Adjustable arrow head system.

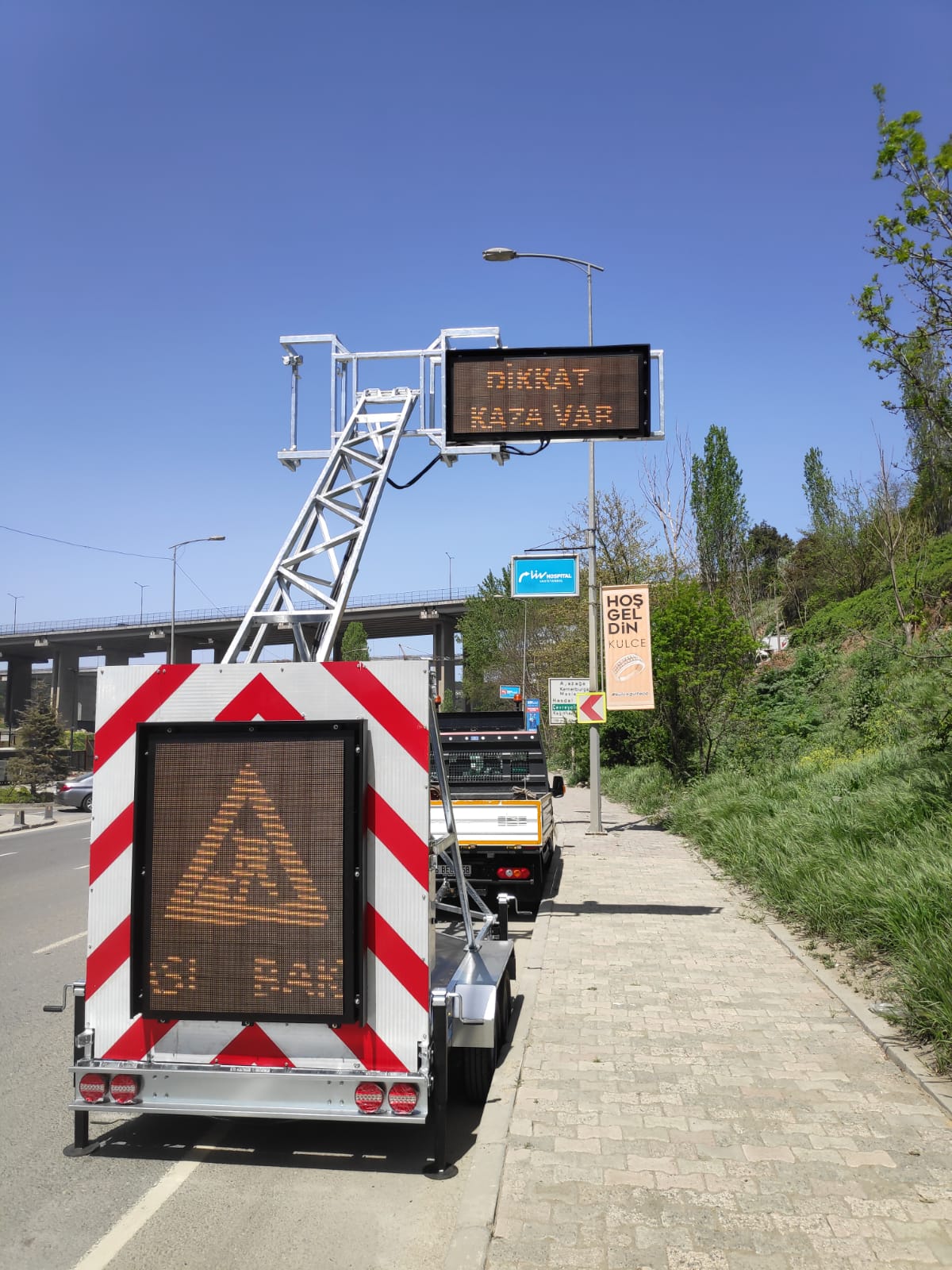

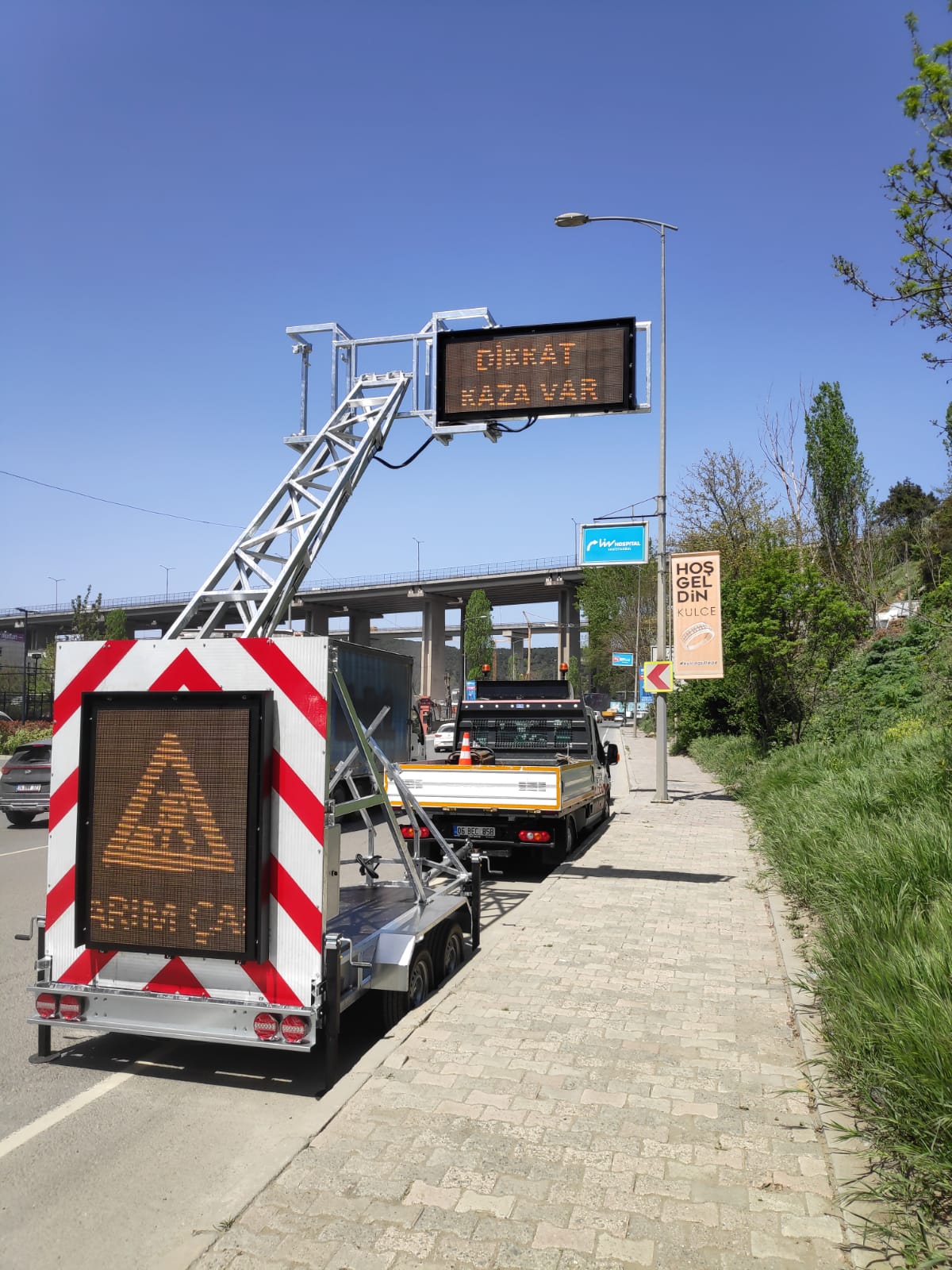

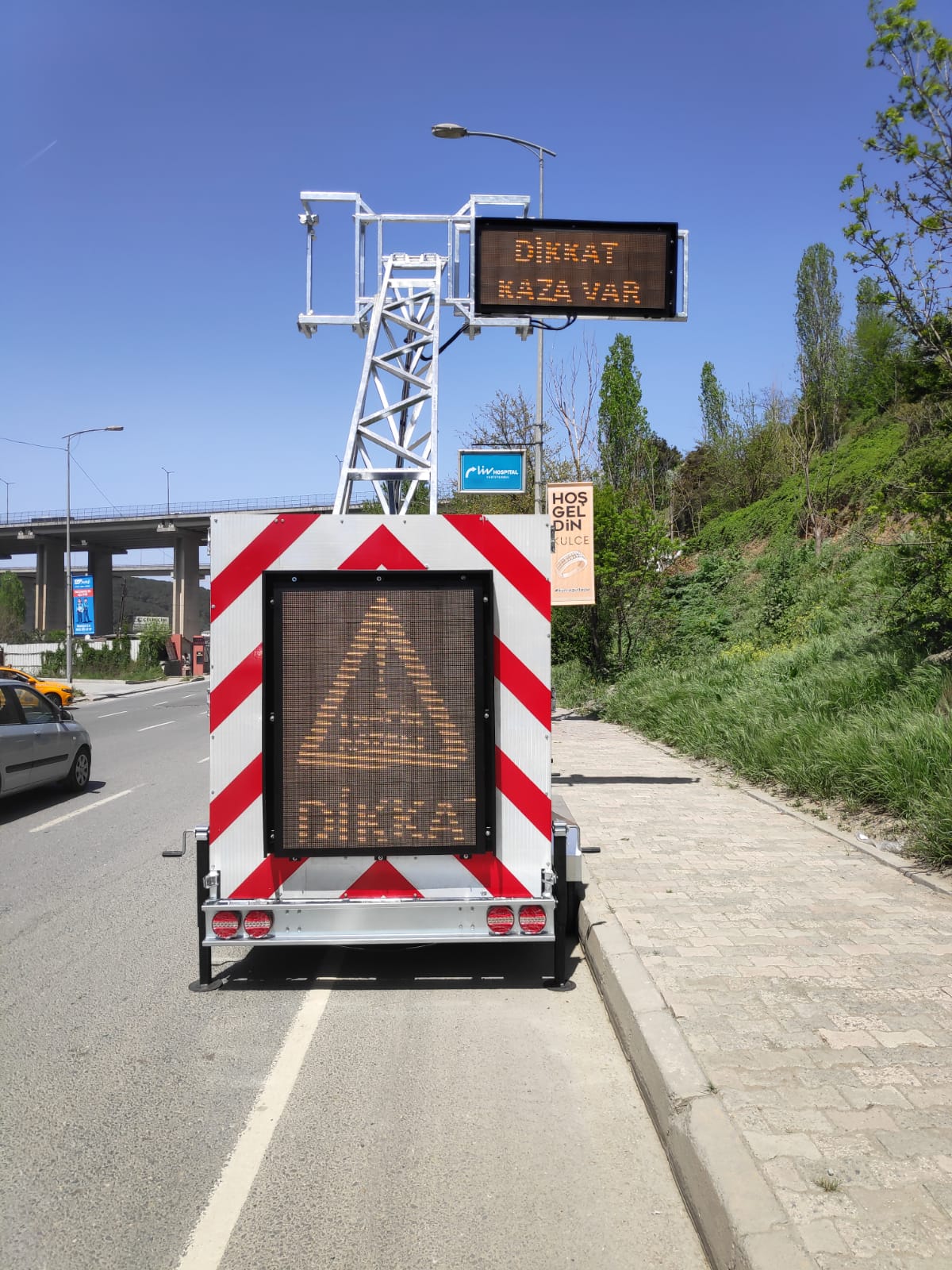

-There are 2 VMS screens on the upper and lower rear of the traffic warning trailer.
-There are 6 100 Ah Gel Batteries in the traffic warning trailer
- Galvanized or electrostatic painted production is available upon request.
- Axle system is adjusted by considering trailer empty and full calculations. The axles used are not composed of straight profile and flat profile, but are suspended with torsion or scissor system.
- The drawbar used in the trailer is certified in accordance with the non-motorized vehicles regulation.
- The front part of the Traffic Warning Trailer has a jockey wheel that allows it to move independently of the vehicle.
- Traffic Warning Trailer has rear and front wheels to fix the trailer to the working part.
- Traffic Warning There are a total of 4 support legs at the rear and front to fix the trailer to the working part.
- Trailer signalizer lifting drive system can be lowered and lifted with a single button with hydraulic motorized system.
- Trailer VMS writings can be changed with a single button on the control panel.

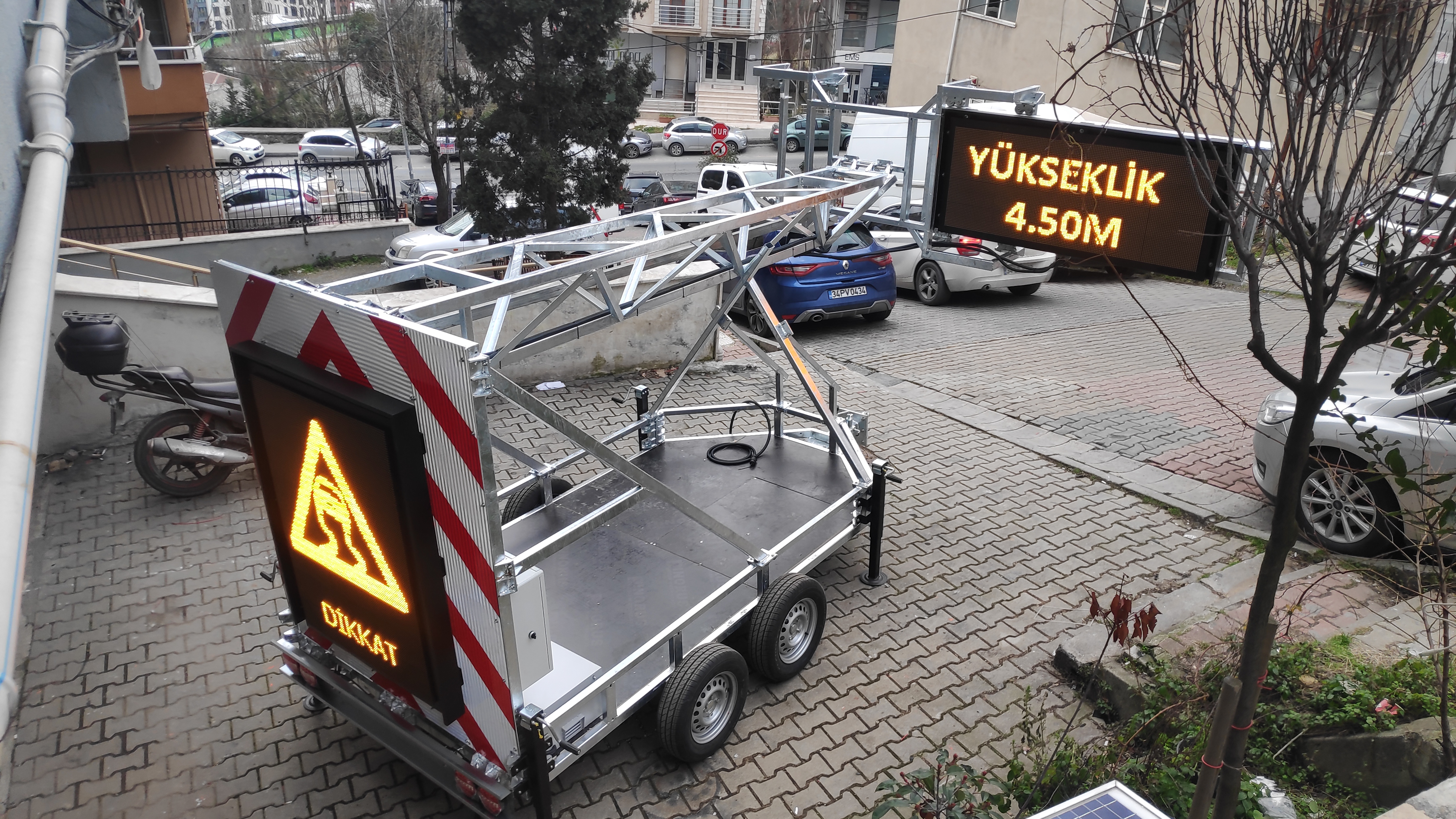

- Trailer top mechanism is a sliding system and can be pulled to the right and left side.
-Trailer top mechanism can be used as gauge and overhead sign.
- The signs on the traffic warning trailer are made of reflective material in accordance with highway standards.
Electrical Specifications;
- Traffic Warning Trailers are manufactured as 12V as standard and can be manufactured as 24V upon request.
- Accumulator Used 12V 6x100Ah as standard
- There are 24 200mm yellow and 2 300mm white strobe lamps on the lighted trailer.
- Strobe lamps and control box have IP67 sealing feature.
- System control card is microcontroller based.
