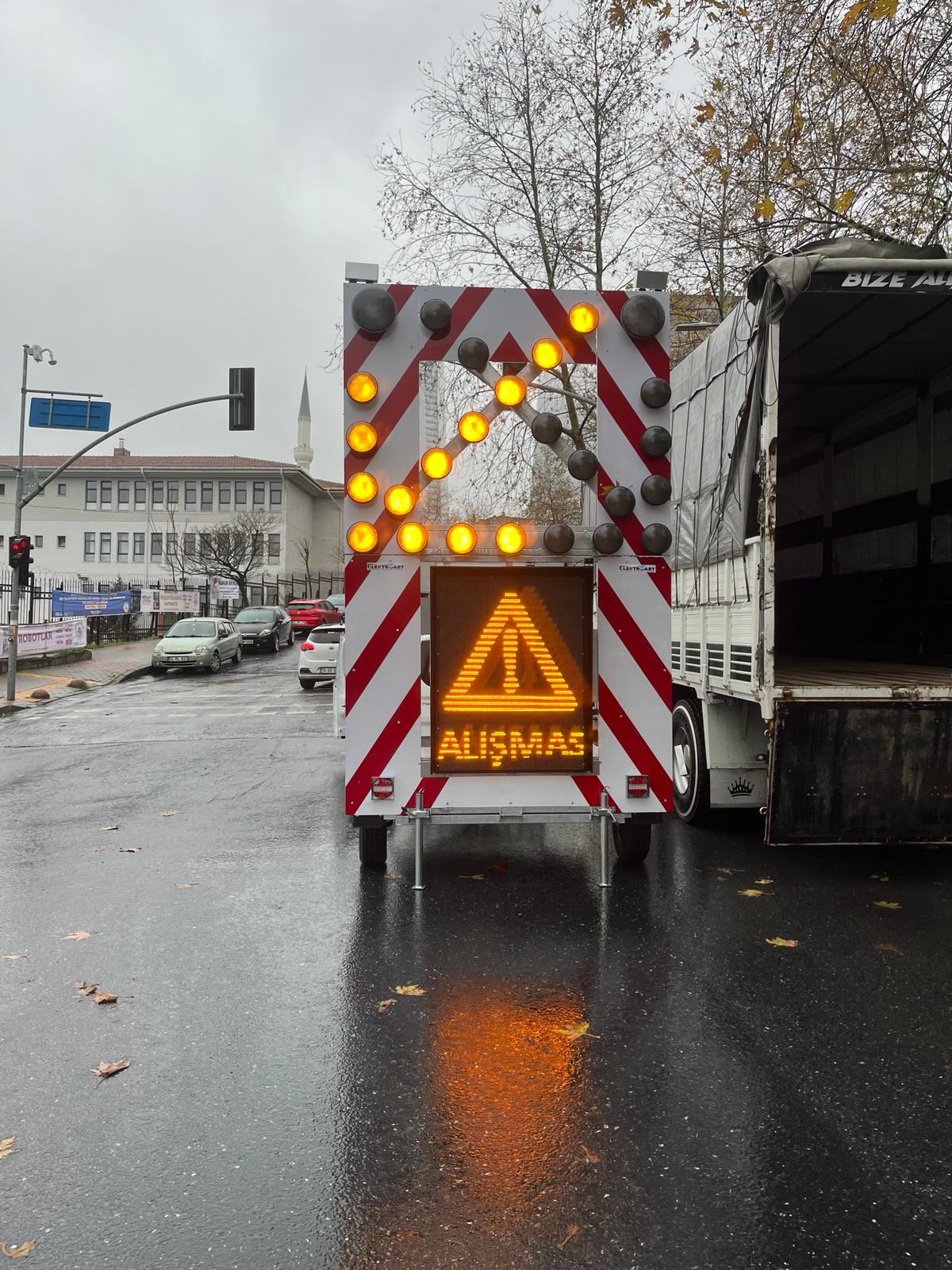

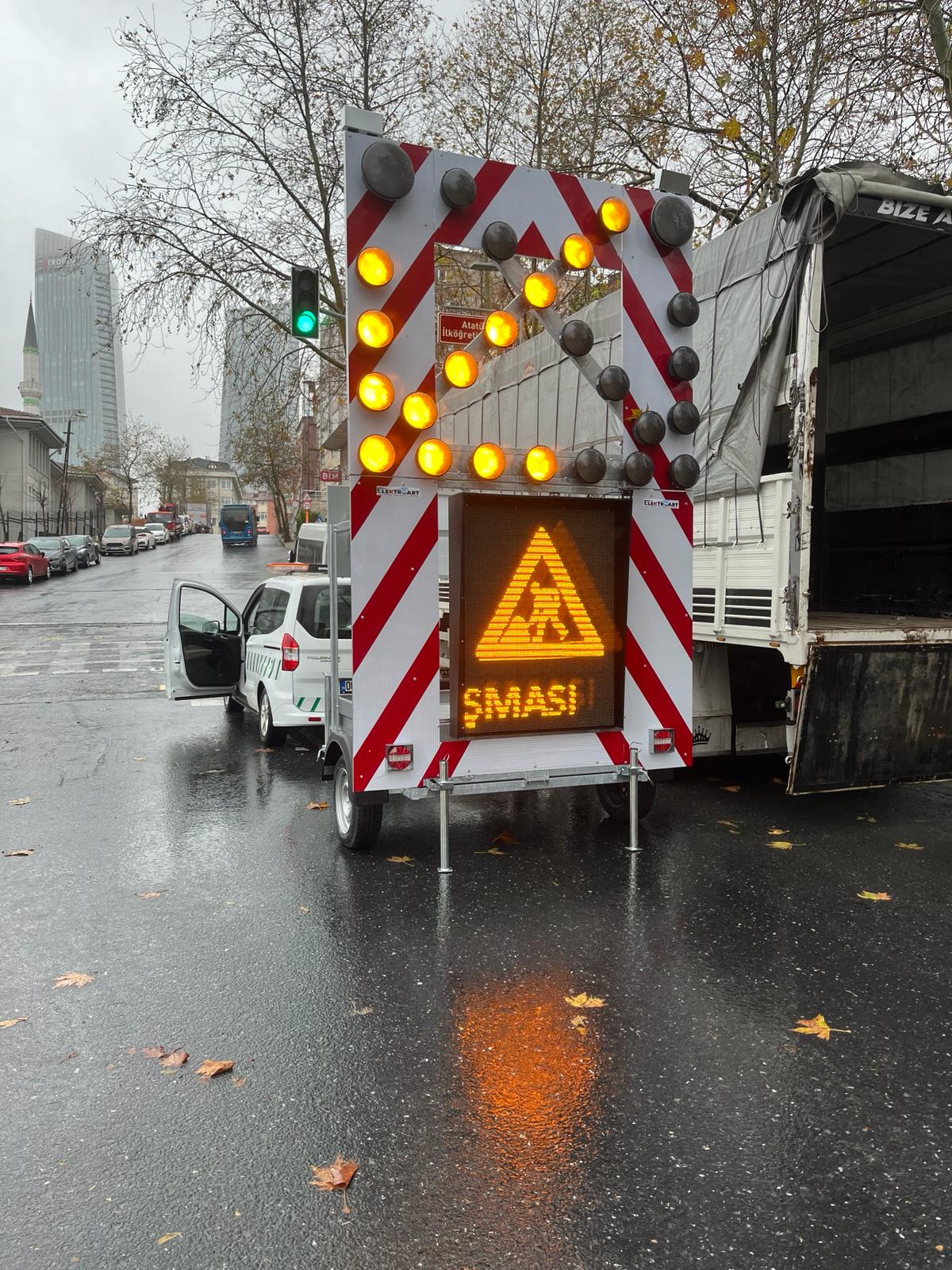

solar traffic warning trailer VMS model

Properties

Product - Project Features
Traffic Warning Trailer Large Model
TECHNICAL SPECIFICATIONS

Mechanical Properties

- Dimensions are manufactured in accordance with highway standards.

-Upper Signaling carcass size 1800x2200mm
-Lower Signaling carcass size 1800x2200mm
-Total open height 2200 x 3900mm
-Loading frame dimensions 1500x2000mm

- The profiles used, static calculations, wind resistance calculations and carrier contraction calculations are manufactured considering all adverse conditions.
- Lifting and lowering with a single button thanks to the hydraulic power unit and 2 hydraulic pistons.
-Front support wheel with double connection bearings
-According to the direction in which the upper arrows of the traffic warning trailer change, the arrow at the bottom turns automatically.

-Solar energy charging system
-There are 4 100 Ah Gel Batteries in the traffic warning trailer
- There is a 305 W solar panel on the traffic warning trailer.

There is a -30 Ah Solar charge control system. battery status can be displayed thanks to the digital display on it.

- Galvanized or electrostatic painted production is available upon request.

- The axle system is adjusted considering the trailer empty and full calculations. The axles used are not composed of straight profile and hubs, but are suspended with torsion or scissor system.

- The drawbar used in the trailer is certified in accordance with the non-motorized vehicles regulation.

- The front part of the Traffic Warning Trailer has a jockey wheel that allows it to move independently of the vehicle.

- Traffic Warning Trailer ç
