ON-VEHICLE VMS SYSTEMS NEW MODEL

Properties

ELEKTROART ON-VEHICLE VMS WARNING SYSTEMS FULL SYSTEM

The system designed by Elektroart Engineers is completely domestic production and has constantly up-to-date software.

-In-car Capacitive 7 or 4 inch Full touch control panel.

Thanks to the software specially developed by Elektroart engineers, the desired texts and symbols can be easily integrated into the control panel. Vms text control, vms symbol control, warning arrow signs, overhead lamps control, side lighting control are easily done via the panel. By memorizing the fault codes related to the system, it provides easy fault detection in case of faults.

-Rear VMS transmits information such as road information and weather conditions to the drivers.

The text commands determined in the vehicle are displayed on the VMS message board at the bottom, thanks to the control panel. The texts on the message board can be written according to the customer's request.

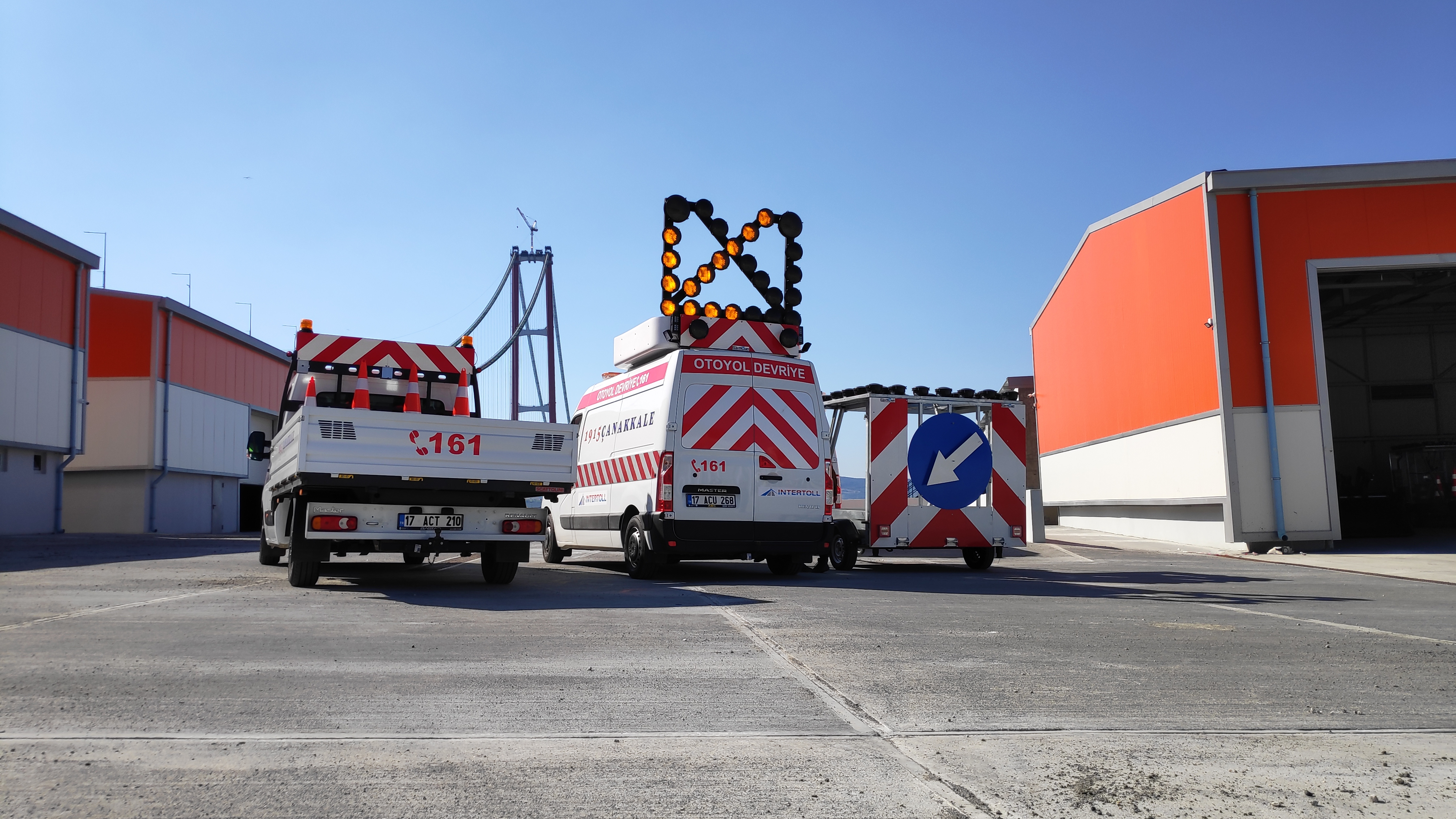

-Caution Arrow Signs.

Right arrow, left arrow, cross modes for road closure, road splitting, lane closing operations are controlled from the control panel inside the vehicle. There are 24 yellow led modules and 2 white flashing modules. There are 21w power LEDs in each module. Thanks to robotic arms and electronic sensors specially designed by Elektroart engineers, it opens and becomes active in seconds.

-Beacon lamp.

It can be controlled from the control panel inside the vehicle, and 2 yellow beacons on the system can be activated, and it can work in different modes such as strobe mode.

- Working lightings.

The lighting lamps on the right and left sides of the vehicle are controlled from the control panel inside the vehicle. It is used to illuminate the current environment with 27w power in situations such as emergency road works.

-Remote control.

Thanks to the software installed on the mobile phone, the ability to control the VMS system from outside without being in the vehicle via bluetooth. (optional)

-Hydraulic system.

It is a system that allows the on-board arrow system to be opened and closed in seconds (5 seconds). It consists of hydraulic piston and main powerpack unit.

- Fiber Protection

Thanks to the fiber protection surrounded around the on-board system, the system is protected from external factors and creates a harmonious aesthetic visual with the vehicle.
